Underground Conduit Systems for High-Voltage Lines

Underground Power Cable Protection Ducts Explained for Safe and Reliable Burial

Have you ever worried about the safety of underground power lines beneath your property? A buried power cable protection duct is a rigid or flexible conduit that shields electrical cables from soil pressure, moisture, and accidental digging. By creating a smooth, continuous channel, it makes cable installation and future replacement far easier while preventing sharp objects from damaging the insulation. Simply place the duct in the trench before laying the cable, then backfill carefully to ensure long-term cable integrity and peace of mind.

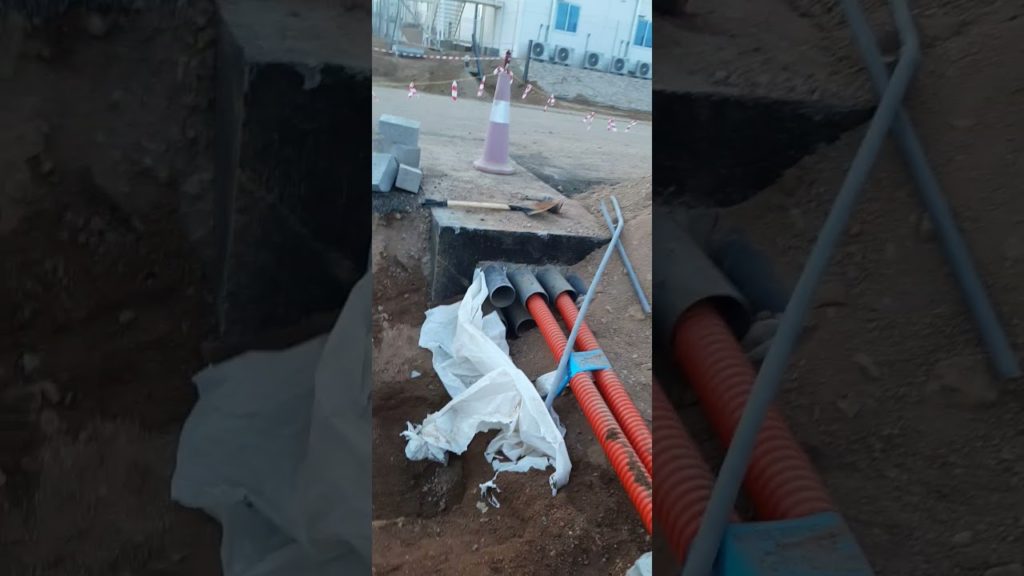

Underground conduit systems for high-voltage lines hinge on the buried power cable protection duct, which acts as a rigid, load-bearing shield against soil pressure and mechanical impact. These ducts, typically HDPE or PVC, are engineered with smooth bores to reduce cable pulling friction and allow for future expansion or replacement without re-excavation. Strategic duct bank layouts account for thermal dissipation, since high-voltage cables generate significant heat, and proper spacing between adjacent conduits prevents derating. Bend radii must adhere strictly to cable manufacturer limits to avoid damaging the insulation during installation. Additionally, duct joints are sealed to block groundwater ingress, which can cause corrosion or partial discharge. For enhanced reliability, concrete-encased duct banks offer superior structural integrity in high-traffic zones, while direct-buried flexible conduits suit lower-stress rural routes. Ultimately, selecting the correct wall thickness and material grade directly determines the long-term survival of the entire cable network.

Why Mechanical Shields Matter for Direct-Buried Conductors

For direct-buried conductors, the surrounding soil is not a passive backfill but an active geotechnical hazard. Frost heave, differential settlement, and sharp rock fragments exert localized point loads that can crush or abrade cable insulation over time. Mechanical shields for direct-buried conductors absorb these concentrated stresses by distributing them across a wider surface, preventing the pinch points that occur where a stone edge meets the jacket. Without a shield, even routine thermal cycling—where the cable expands and contracts—creates micro-movements that grind against abrasive particles. A rigid or semi-rigid shield, typically steel or high-density plastic, also resists puncture from excavator teeth or augers during accidental digs, converting a catastrophic cable failure into a repairable dent. The shield’s compressive strength is the first line of defense before the duct or conduit even becomes relevant.

Mechanical shields matter because they convert unpredictable soil pressures and impact forces from a direct-buried conductor’s worst enemy into a manageable, distributed load—preserving cable integrity where no conduit exists.

Material Breakdown: HDPE, PVC, and Fiberglass Reinforced Options

HDPE, PVC, and fiberglass reinforced options for buried power cable protection duct differ primarily in mechanical resilience and installation constraints. HDPE conduit excels in continuous lengths via trenchless pulling, resisting abrasion and ground movement without brittle fracture. PVC offers superior corrosion resistance and lighter handling, but it fails under cyclic loading unless encased in concrete. Fiberglass reinforced (FRP) duct provides exceptional crush strength and thermal stability, though its rigid sections demand precise alignment. The trade-off between HDPE’s flexibility and FRP’s rigidity determines suitability for direct burial versus encased duct banks. For site selection:

Assess soil corrosivity and load-bearing capacity.
Match duct material to pulling tension and bend radius.
Verify joint integrity against water ingress for each polymer type.

Corrugated vs. Smooth-Wall Tubes: Performance Under Load

Under vertical soil load, corrugated tubes exhibit superior crush resistance due to their annular rib geometry, which distributes stress across the profile, whereas smooth-wall tubes rely solely on wall thickness, making them prone to ovalization at shallower burial depths. For repeated heavy vehicular traffic, corrugated designs also dissipate cyclic loading more effectively, preventing localized wall buckling. However, smooth-wall tubes offer lower frictional resistance during cable pulling, reducing installation tension on long runs. When selecting, consider the specific load path:ring stiffness is critical for corrugated, while flexural rigidity dominates smooth-wall performance.

Assess soil depth and compaction to determine required ring stiffness.
Calculate traffic load frequency to judge fatigue resistance.
Compare pulling friction coefficients for cable insertion feasibility.

Designing Trench Layouts for Heavy-Traffic Zones

Designing trench layouts for heavy-traffic zones demands a shift from standard utility burial to engineered load-path distribution. The main concept is protecting the buried power cable protection duct from dynamic shear forces, not just static earth pressure. Route the duct in a zigzag or sweeping curve, never a straight line, to absorb thermal expansion and prevent stress fractures at joints when vehicles hammer the surface. Position the duct at a minimum depth of 900mm, but critically, embed it in a lean concrete surround—not sand—to transfer wheel loads away from the pipe wall. Transition zones, where trench meets existing pavement, are failure hotspots; install a reinforced concrete transition slab to bridge stiffness differences.

Always offset multiple duct runs horizontally rather than stacking them vertically, because a direct hit from a heavy axle can crush the lower duct even if the upper one survives.

Finally, cap the trench with a buried warning tape and use bolted, not glued, duct couplers to allow slight movement without rupture under repeated flexing.

Depth Calculations Based on Soil Type and Surface Weight

For heavy-traffic zones, depth calculations based on soil type and surface weight must start with a soil compaction test, since loose sand or fill shifts load differently than dense clay. Multiply the surface weight (e.g., truck axle loads) by a dynamic impact factor of 1.5 to 2.0, then cross-reference against the soil’s bearing capacity table. In cohesive soils, a 900 mm cover often suffices; in granular or waterlogged soils, increase to 1,200 mm to prevent shear failure. The buried duct’s true protective value emerges only when the calculated depth exceeds the load’s pressure bulb by at least 300 mm. Follow this sequence:

Measure in-situ soil density and moisture content.
Calculate total wheel load with impact factor.
Determine allowable soil pressure from geotechnical charts.
Adjust depth until the resulting stress at duct crown is below 10% of soil’s yield strength.

Recheck depth after any backfill change, as compaction variance shifts load transfer.

Bending Radius Limits and Pulling Tension Considerations

In heavy-traffic trench layouts, **bending radius limits** dictate the minimum curvature a duct can sustain without kinking or overstressing the cable. For buried power duct, the allowable bend radius typically ranges from 12 to 20 times the cable’s outer diameter, depending on jacket type and conductor configuration. Pulling tension considerations require calculating cumulative sidewall pressure at each bend; exceeding 300 lbf per foot of radius can crush the duct or damage insulation. Use a swivel pulling eye and tension-monitoring winch to stay below the manufacturer’s rated pull strength—typically 5,000–10,000 lbf for medium-voltage cables. Sequence checks:

Measure duct inner diameter and confirm cable clearance ratio ≥1.5:1.
Lay out bends at ≥90° radius, using long sweeps or pull boxes to reduce friction.
Apply pulling lubricant and cap pulling tension at 75% of the cable’s maximum allowable value.
Verify each bend’s angle and radius against the cable’s bending radius limit before final backfill.

Spacing Rules Between Parallel Circuits to Prevent Heat Build-Up

In heavy-traffic trench layouts, spacing between parallel circuits must be calculated from the duct’s outer wall, not the cable, to ensure convective airflow and soil heat dissipation. A minimum center-to-center clearance of 0.3 meters for circuits below 11kV prevents mutual heating, while higher-load circuits require 0.5 meters or more. Thermal derating under concurrent loads demands that adjacent ducts avoid shared backfill pockets, as compacted granular material traps heat. When trench depth exceeds 0.9 meters, increase lateral spacing by 10% to offset reduced surface radiation. Always verify spacing against worst-case summer soil moisture, since dry ground amplifies temperature overlap between circuits.

Maintain 0.3–0.5 m duct wall spacing per voltage class.
Add 10% lateral gap for every 0.3 m depth beyond 0.9 m.
Use separate thermal backfill zones for each parallel run.
Check peak load derating, not average load, when fixing spacing.

Moisture Intrusion and Watertight Sealing Techniques

Moisture intrusion in a buried power cable duct is your main enemy—it turns a simple conduit into a corrosion chamber and a potential fault zone. To fight this, you need watertight sealing at every joint and entry point, not just near the surface. Use compression-type duct seals with rubber grommets that grip the cable tightly, and pair them with an expanding hydrophobic sealant that swells on contact with water. For the duct ends, install a watertight sealing technique like a heat-shrink cap or a mechanical end plug with a reusable O-ring. Don’t rely on tape alone; it degrades. Instead, backfill around the duct with a moisture intrusion barrier like bentonite clay, cable protection pipe which creates a self-healing plug if soil shifts. The one detail you cannot skip: always slope the duct slightly (0.5–1%) toward a drainage sump—even a perfect seal fails if standing water pools and hydrostatic pressure forces its way past a weak point.

Pre-Installed Pull Ropes vs. Rodding Methods

When installing cables within buried ducts, the choice between a pre-installed pull rope and rodding methods directly impacts speed and duct integrity. A pre-installed pull rope, left in place during duct installation, allows immediate cable pulling without additional equipment, reducing labor time and minimizing disturbance to the trench. Conversely, rodding methods, which use flexible rods pushed through the duct, are ideal for existing or longer runs where ropes were not pre-placed. However, rodding can encounter difficulties with sharp bends or accumulated moisture, risking duct abrasion. For new buried power duct systems, **pre-installed pull ropes offer superior reliability** and simpler cable replacement, whereas rodding remains a practical fallback for retrofits but demands more careful handling to avoid damaging the duct’s watertight integrity.

Expansion Joints for Temperature-Driven Soil Movement

Temperature-driven soil movement, from seasonal freeze-thaw cycles or thermal expansion of sun-baked ground, physically yanks at buried ducts. Expansion joints for temperature-driven soil movement absorb this shifting strain by flexing along the duct’s axis, preventing fractures at rigid coupling points. Position them every 15–20 meters, especially where soil type changes—clay versus sand—create differential movement. A bellows-style joint with a sliding sleeve handles lateral shear effectively, while a rubber-reinforced boot suits moderate axial pull. Ensure the joint’s travel rating exceeds local soil’s expected displacement by at least 20%; otherwise, the duct tears open at the seal. Pair each joint with a watertight outer boot, since flexing inevitably stresses the primary waterproofing membrane. Inspect joints annually before wet season, as silt ingress often signals a compromised expansion seal.

Duct Bank Grouting: When to Use Sand or Flowable Fill

For duct bank grouting, the choice between sand and flowable fill hinges on soil stability and water exposure. Use clean, compacted sand when the trench walls are self-supporting and groundwater is not an issue, as it allows for future excavation and provides adequate thermal conductivity. Conversely, specify flowable fill for watertight sealing in saturated soils or where surface water may infiltrate, since it cures into a low-permeability mass that prevents voids and rodent intrusion. Flowable fill is also superior beneath roadways, resisting settlement that sand cannot guarantee. However, never use flowable fill where cable access is anticipated, as its high strength complicates future cuts.

Installation Workflows Across Different Terrain Conditions

Installation workflows for buried power cable protection duct vary significantly with terrain. On flat, stable ground, trenching with a chain trencher allows continuous duct laying with minimal shoring, prioritizing consistent depth and bedding compaction. In rocky terrain, workflows shift to rock saws or pneumatic hammers, requiring a sand or screened-soil cushion to prevent sharp fragments from abrading the duct. For high water tables or marshy areas, dewatering pumps and trench boxes become mandatory; here, ducts must be weighted or anchored with concrete sag blocks to counteract buoyancy before backfilling. On slopes, installation proceeds uphill to prevent duct displacement, using timber stops or earth anchors to hold sections until the next joint is welded. Each terrain demands pre-planning of machinery access and spoil placement, but the core workflow—excavate, lay, protect, backfill—remains constant.

The key insight is adapting joint spacing and anchoring frequency to the specific ground stability, not the duct material itself.

Open-Cut Trenching on Rocky Ground

In rocky terrain, open-cut trenching demands a shift from standard excavation to mechanical breaking or controlled blasting, directly impacting how the protection duct for buried power cables is laid. Instead of a smooth, continuous trench, you get an uneven, jagged profile that must be cleaned of sharp spalls before any duct placement. This process follows a strict sequence: first, rip or break the rock to a depth exceeding the duct’s final cover, then remove the fractured material to create a clear path. Next, lay a bedding layer of sand or fine gravel to cushion the duct against point loads from rock fragments. Finally, backfill with more bedding material, carefully compacting in thin lifts to avoid shifting the duct against unyielding rock walls, which could otherwise crush or abrade the conduit.

Horizontal Directional Drilling for Road Crossings

For road crossings, horizontal directional drilling (HDD) eliminates open-cut disruption while protecting the cable duct from traffic loads. The duct is pulled through a pre-reamed borehole, staying below frost depth and pavement structure, preventing future settlement. HDD requires a precise entry angle—typically 8–12 degrees—and a pilot bore that maintains a curved radius matching the duct’s bend limits. Pullback tension must be monitored continuously to avoid stretching or crushing the duct, especially with HDPE conduits. Use a swivel to prevent torque transfer, and pump bentonite slurry to hold the bore open until the duct is seated. This method preserves road integrity and reduces restoration costs.

HDD for road crossings places the protection duct beneath intact pavement, avoiding trenching, ensuring structural safety, and minimizing surface disruption.

Rigid Sections vs. Flexible Coils for Curved Alignments

For curved alignments, flexible coils outperform rigid sections by eliminating the need for prefabricated angled joints, which often misalign with actual trench geometry. Rigid sections require precise cutting and multiple couplers at every bend, creating leak-prone weak points and slowing installation. Flexible coils bend continuously to match sweeping radii, reducing pull-in friction and preventing cable snagging on sharp internal edges. They also adapt to minor trench deviations without rework, while rigid sections demand exact bedding contours. For tight radius curves, use a coil’s minimum bend radius rating, but for mixed terrain with abrupt directional changes, rigid sections with factory-formed elbows may better resist kinking. Choose coils for smooth, long-radius arcs; rigid for segmented, acute-angle transitions.

Flexible coils reduce joint count by up to 70% on curved runs.
Rigid sections need extra couplers at every bend, increasing labor time.
Coils allow continuous pulling with lower tensile stress on the cable.
Rigid elbows provide predictable geometry for extreme angle changes.

Detecting and Avoiding Existing Utilities During Placement

Before you ever cut a trench for the buried power cable protection duct, you must walk the route with a locator, because a single misread strike on a gas line or water main can bury your project in delays. I’ve seen crews trust old as-built drawings and then hit a live telecom conduit within minutes of the first dig. You need to sweep the entire corridor with electromagnetic and ground-penetrating radar, marking every existing utility in paint, not just the ones on the map. The duct’s depth means you’ll often cross other services, so hand-dig potholes at every crossing to expose the true line before any machine touches soil. Never rely on a single detection pass—recheck after rain or ground disturbance, because clay and wet sand can mask signals. Only when you’ve positively cleared the path, and physically seen the foreign pipes, can you lay the duct without fear of a costly, dangerous rupture. It’s the difference between a clean backfill and a lawsuit that starts with a hiss of escaping gas.

Electromagnetic Locating with Trace Wires

When installing buried power cable protection duct, electromagnetic locating with trace wires provides the most reliable method for mapping duct alignment before excavation begins. A trace wire, laid alongside or taped to the duct, carries a discrete radio-frequency signal that a locator receiver detects above ground, allowing crews to pinpoint horizontal position and depth with centimeter-level accuracy. Signal coupling to adjacent metallic utilities can distort readings, so verify the trace wire’s integrity with a continuity test before backfilling. Sweep the receiver perpendicular to the suspected path every few meters, and mark the ground directly above the wire—not at the peak signal—to avoid parallax error. For bends or splices, reduce transmitter power to prevent bleed-over onto parallel conductors. This technique works even when the duct is non-metallic, since the trace wire becomes the sole conductive reference, eliminating guesswork during subsequent digs.

Electromagnetic locating with trace wires turns an invisible duct run into a measurable, mapable path—reducing strike risk and ensuring every excavation stays clear of the protected cable.

Color-Coding Standards for Buried Infrastructure

Before placing a buried power cable protection duct, verify the existing utility color codes to avoid conflicts. The American Public Works Association (APWA) uniform color code marks underground lines: red for electric power, yellow for gas/oil, orange for communications, blue for water, and green for sewers. For duct installation, locate red markings first, as they indicate live circuits that demand manual exposure rather than mechanical digging. White paint or flags denote proposed excavation limits, so your duct trench must stay within that boundary. Check for missing or faded paint—re-mark with the correct color before any cut. Use a locating device to confirm depth, since surface color alone never guarantees exact position.

Red marks mean high-voltage cables; never assume duct depth from paint alone.
Orange typically signals fiber or telecom ducts that may share the corridor.
Yellow flags near your trench path require hand digging to prevent gas line strikes.
Always photograph color-coded marks before backfilling for future reference.

Hand-Digging Protocols Near Foreign Lines

When you’re digging near foreign lines, hand tools are your best friend—never power equipment. Start by exposing the utility with a non-conductive shovel, using shallow, horizontal scraping motions instead of vertical jabs. This **soft-digging technique near foreign lines** protects both the unknown cable and your cable’s protective duct from accidental puncture. Work in thin layers, and if you hit anything firm, stop and probe with a wooden stick. Keep a 12-inch clearance zone around the exposed line, and support it gently with sand if it’s sagging. Always assume the foreign line is live until proven otherwise, and backfill by hand, not with machinery.

Q: How deep should I hand-dig before switching to a shovel?
A: Dig by hand from the surface down—no mechanical digging at all within 18 inches of the marked line. That’s the safest way to avoid slicing through a neighbor’s conduit.

Long-Term Protection Against Rodents and Root Intrusion

For decades of buried service, a robust protection duct forms the definitive barrier against two relentless threats: rodents and root intrusion. Its continuous, seamless wall denies gnawing pests the mechanical foothold they need to compromise cable insulation, while its dense polymer composition resists the acidic secretions and pressure from aggressive root systems. Unlike loose conduit, a properly sealed duct maintains a complete envelope that roots cannot penetrate or crush, and its smooth internal bore prevents debris accumulation that might attract burrowing animals. The material’s inherent hardness is not a passive feature—it actively redistributes soil load, so even decades of shifting ground do not create micro-gaps for entry. What ultimately separates a superior duct is not just its initial thickness, but its sustained resistance to environmental stress cracking, which is the true weak point for lesser materials. Choose a duct engineered for permanence, and you eliminate the costly cycle of excavation and repair before it ever begins.

Anti-Termite Sleeves in Tropical Climates

In tropical climates, untreated cable ducts face relentless subterranean termite pressure, but anti-termite sleeve protection for buried cables creates a chemical and physical barrier that pests cannot breach. These sleeves, often impregnated with non-leaching biocides or manufactured from termite-resistant polymers, prevent colony foraging from ever reaching the duct surface. Unlike temperate zones, tropical humidity accelerates both termite activity and microbial degradation, so sleeves must maintain integrity under constant moisture and high soil acidity. Practical installers select seamless, corrugated sleeves that resist cracking during backfill compaction, ensuring no gaps for entry. While mechanical rodent guards fail against termite swarms, these sleeves remain fully passive, requiring zero maintenance once buried, and they preserve duct integrity for decades despite the aggressive subterranean environment.

Root-Barrier Membranes for Tree-Lined Corridors

In tree-lined corridors, root-barrier membranes for tree-lined corridors must be installed vertically between the duct run and the planting zone, extending at least 600 mm below the duct’s invert to intercept taproots. Use HDPE or polypropylene sheets (1–2 mm thick) with welded seams, as overlaps allow root entry. Terminate the membrane 50 mm above finished grade to prevent surface-root bridging. Backfill the trench side with compacted clay or a geotextile-wrapped aggregate to block lateral pressure from root-thickening over decades. Anchor the membrane’s bottom edge to the trench floor using U-pins, and avoid rigid materials that crack under frost heave. For existing trees, install the membrane in segmented panels to minimize excavation disturbance near the root zone.

Root-barrier membranes deflect woody roots away from buried cable ducts, but only if installed deeper than the duct, seam-sealed, and terminated above grade to prevent bypass growth.

Sealed End Caps and Pull Boxes as Entry Points

Sealed end caps and pull boxes represent the most vulnerable boundaries in a buried duct run, as they are the only deliberate openings in an otherwise continuous conduit. Properly installed end caps with gasketed, compression-fit seals physically block rodent entry by eliminating the gap between duct and cable, while pull boxes require lids with recessed, locking mechanisms and perimeter foam gaskets to prevent root hairs from threading through micro-cracks. For long-term protection, every pull box should use a buried, below-grade design with a sealed inner liner, ensuring that even if the outer lid shifts, the inner seal remains intact. Sealed end caps and pull boxes as entry points demand periodic inspection, since thermal cycling can loosen fittings over years, but their integrity is the decisive factor in keeping the duct entirely closed against biological intrusion.

Q: Are sealed end caps enough, or do pull boxes need extra treatment?
A: Pull boxes require more robust sealing than end caps because their larger surface area and access lids present more potential leak paths—use both a compression gasket and a root-barrier membrane around the box perimeter.

Maintenance Access and Future Cable Replacement Strategies

The duct’s true value emerges when a cable fails or needs an upgrade. By installing maintenance access points—such as handholes or pull pits—at every bend and every 100 meters, crews can open the buried system without digging up the entire trench. Inside, a future cable replacement strategy relies on the duct’s smooth inner wall and a pre-installed pull rope or mule tape, left behind during the initial burial. When a larger conductor is needed, the old cable is winched out while the new one is attached to the same line, sliding through the pre-lubricated inner bore without disturbing the surrounding soil or pavement. This approach turns a once-disruptive excavation into a routine, hour-long operation. Even decades later, a corroded splice can be isolated and pulled free, because the duct’s continuous path preserves the original bore’s alignment, saving thousands in restoration costs. Every access point doubles as a splicing chamber, meaning future generations of engineers inherit a living, reusable conduit rather than a buried relic.

Manhole Spacing for Extended Runs

For extended buried duct runs, manhole spacing must balance construction cost against cable-pulling tension limits. Longer intervals reduce excavation expenses but increase the risk of damaging cable jackets during installation due to higher frictional resistance. A practical maximum spacing is typically 150 to 200 meters, assuming straight alignments with minimal bends. However, strategic manhole placement at every change in direction is critical, as sidewall pressure at bends concentrates stress and accelerates sheath wear. When terrain is uneven or duct bends exceed a few degrees, reduce spacing to 100 meters or less. This allows intermediate pulling points, simplifies future cable extraction, and prevents overtensioning during replacement. Always calculate expected pull forces before finalizing distances.

Innerduct Subdivision to Add Capacity Without Digging

Innerduct subdivision maximizes existing buried duct infrastructure by replacing a single large conduit with multiple smaller sub-ducts, enabling cable additions without trenching. This method relies on pulling a flexible, high-density polyethylene innerduct through the host pipe, then dividing the available cross-section into dedicated lanes. Each sub-duct accommodates a separate cable, allowing future circuits to be installed individually without disturbing active lines. For effective implementation, the original duct must have sufficient spare diameter—typically at least 2:1 fill ratio—and smooth internal walls to reduce friction during pulling. The primary benefit is incremental capacity expansion via innerduct subdivision, which delays or eliminates the cost and disruption of new excavation. However, pulling tension limits and bend radii must be calculated pre-installation to avoid damaging existing sheaths. Once subdivided, each lane can be independently accessed for future cable replacement, extending the duct’s lifecycle indefinitely.

Can innerduct subdivision handle fiber optic cables alongside power conductors? Yes, but only if the sub-ducts are separately rated for voltage isolation and thermal dissipation. Power cables require larger sub-ducts with ventilation gaps, while fiber can use tighter lanes, ensuring no physical contact or heat transfer between them.

Inspection Cameras and CCTV Flushing Schedules

To keep buried power ducts viable for future cable pulls, CCTV flushing schedules must align with debris accumulation, not just calendar dates. Run a camera inspection before every planned flush to map silt traps and standing water—this prevents pushing wet sediment deeper into the conduit. After flushing, immediately re-insert the camera to verify that the water jet cleared the full bore and to spot exposed cable snags or collapsed duct sections. For proactive maintenance, follow this cycle: quarterly visual scans for shallow ducts, biannual high-pressure flushing with pre- and post-camera passes for deep runs, and an annual full-length CCTV audit to update your blockage-risk register. Record footage timestamps alongside flush pressures so you can correlate which jetting force actually dislodges stubborn deposits. Skipping this paired workflow risks hidden blockages that turn future cable replacement into a dig-up nightmare.

Regulatory Compliance for Load Ratings and Fire Resistance

For buried power cable protection duct, regulatory compliance for load ratings mandates that the duct’s crush resistance and dimensional stability be verified under specific soil depths and surface loads, often per standards like ASTM D2412 or ISO 11298. These tests ensure the duct does not deform under backfill pressure, which would otherwise derate the cable’s ampacity by reducing heat dissipation. Fire resistance compliance requires the duct material to meet flame spread and smoke generation limits, such as UL 94 V-0 or IEC 60332-1, to prevent fire propagation along underground routes. Practical adherence involves selecting ducts with documented test certificates and installing them at depths that match the rated load assumptions. Verification of joint integrity is equally critical, as gaps can compromise both load-bearing capacity and fire containment. Always confirm that the duct’s stated ratings align with the local utility’s burial specifications before installation.

UL 651 and NEMA TC-2 Standards Reference

For buried power cable protection duct, UL 651 and NEMA TC-2 compliance ensures the conduit’s wall thickness and material formulation meet minimum crush resistance and impact strength for direct earth burial. UL 651 certifies rigid PVC conduit for underground use, verifying its ability to withstand load-bearing compaction without deformation that could pinch cables. NEMA TC-2 defines dimensional tolerances and ribbed or smooth wall profiles, ensuring consistent fit for cable pulling and preventing stress points under thermal expansion. When specifying duct for trench depths exceeding 24 inches, cross-referencing both standards guarantees the rated load per foot is not exceeded, avoiding long-term creep failure. Always verify that the duct’s UL mark matches the specific NEMA TC-2 size table for your burial depth, as mismatched ratings void fire-resistance claims.

UL 651 provides safety and flame-resistance validation; NEMA TC-2 ensures mechanical and dimensional integrity. Together, they define the allowable burial depth and load threshold for each duct size.

Halogen-Free Compounds for Tunnel Installations

For tunnel installations, halogen-free compounds in buried power cable protection ducts eliminate the release of toxic, corrosive gases during fire exposure, which is critical in confined, poorly ventilated spaces. These materials, typically cross-linked polyethylene (XLPE) or polypropylene-based blends, maintain structural integrity to preserve load ratings while resisting thermal degradation. When specifying, verify the compound’s oxygen index and smoke density rating against tunnel fire curves. Selection must prioritize low peak heat release rate to limit flame spread along the duct bank.

Confirm halogen content below 0.5% per IEC 60754-1.
Assess compressive strength at 300°C for sustained cable support.
Validate UV resistance if exposed during construction phases prior to backfill.

Third-Party Testing for Crush Strength and Impact Resistance

When you need to verify that buried duct truly handles earth load and accidental excavator strikes, third-party testing for crush strength and impact resistance is your best friend. Independent labs drop weighted tup on samples and apply compressive force per ASTM D2412, giving you unbiased numbers—not manufacturer promises. This matters because a duct that passes in-house may fail under real backfill pressure or rocky installation. Always ask for the actual test report, not just a certificate.

Q: How much sample material is required for third-party testing?
Usually you’ll send 3–5 full duct sections, plus couplings, so the lab can test both peak crush and post-impact deformation without reusing damaged pieces.
